Plan a resale layout with evidence

Before a viewing: identify the source, not a typical layout

Record the exact file or sheet you have: its source, flat or unit identity, issue date or revision if shown, page count, legibility and whether its symbols or notes are complete enough for the question being asked. Keep the original unchanged. Do not substitute a listing image, a remembered neighbour’s layout or a plan for another unit.

Start an uncertainty register:

• Which dimensions, walls, openings, fixtures and notes are explicitly shown?
• Which marks are unclear, cropped, missing or unsupported by a plan-specific legend?
• Is the revision or completeness unknown?
• Which questions concern later alterations, finishes, services, concealed conditions or defects that the source plan cannot establish?
• What must be observed, measured, checked against records or assessed by a qualified person?

Write the household brief without pretending fit is known

List the household’s activities, privacy and mobility needs, work or study patterns, storage categories, furniture worth retaining and likely changes. Rank each need as essential, preferred or deferrable. Then compare zones rather than committing to fitted dimensions:

• Circulation. Which everyday routes should stay direct and unobstructed?
• Storage. What needs frequent access, and near which activity?
• Adjacency. Which activities benefit from proximity or separation?
• Furniture zones. What approximate footprint and use space should be tested later?
• Simultaneous use. Where could doors, chairs, drawers or people compete for space?

These are planning prompts, not fit confirmation. Keep alternatives open where dimensions, openings, finishes or obstructions remain unverified.

During a viewing or other lawful observation

Observe only where and when you are lawfully permitted. Do not assume a right to measure, inspect, open, operate or disturb anything. Keep observations separate from conclusions and from transaction advice.

• Does an opening appear where the source shows one, and does its apparent position or operation need later measurement?
• Are visible walls, partitions, fixtures or built-ins consistent with the drawing, or simply not established by it?
• Are there visible service points or obstructions that need records and qualified checks?
• Are there signs that prompt a condition or defect question for an appropriate inspection, without diagnosing the cause?
• Could finishes or fitted items conceal boundaries, services or dimensions?

Use neutral language: “not shown”, “not observed”, “appears different”, “to verify”. A photograph or viewing note documents what was visible at that moment; it does not establish concealed condition, compliance, alteration history or construction feasibility.

Build a plan-versus-condition record

A simple record keeps the evidence honest. For each item, note what the source shows, what was lawfully observed, and what evidence comes next.

Do not convert “not shown” into “does not exist”, or an apparent discrepancy into proof of an alteration. Preserve the source, the observation date and who recorded it.

After possession: measure, check and revise

When you have lawful access and permission for the relevant activity, measure the conditions that control a decision using appropriate methods. Compare openings, boundaries, fixtures, obstructions and finished dimensions with the source and record discrepancies. Seek current official information and qualified assessment for structure, mechanical, electrical and plumbing systems, safety, accessibility, regulatory matters, defects and construction feasibility.

Revisit circulation, storage, adjacency and furniture zones using the measured evidence. Include product dimensions, tolerances and installation access where fit matters. If evidence conflicts with the proposal, correct the layout proposal and reassess every later layout or image. Do not protect an attractive option from inconvenient site evidence.

Keep six layers distinct

1. Source plan. The exact identified drawing and its explicit content. It does not automatically describe the current physical flat.
2. Observed existing condition. Dated, limited observations made during lawful access. Not a survey, inspection or concealed-condition finding.
3. Plan-derived proposal. An early layout proposal with recorded uncertainty. It is not a measured record.
4. Human-reviewed layout proposal. A versioned, correctable proposal reviewed by a person before it guides later 3D or layout work.

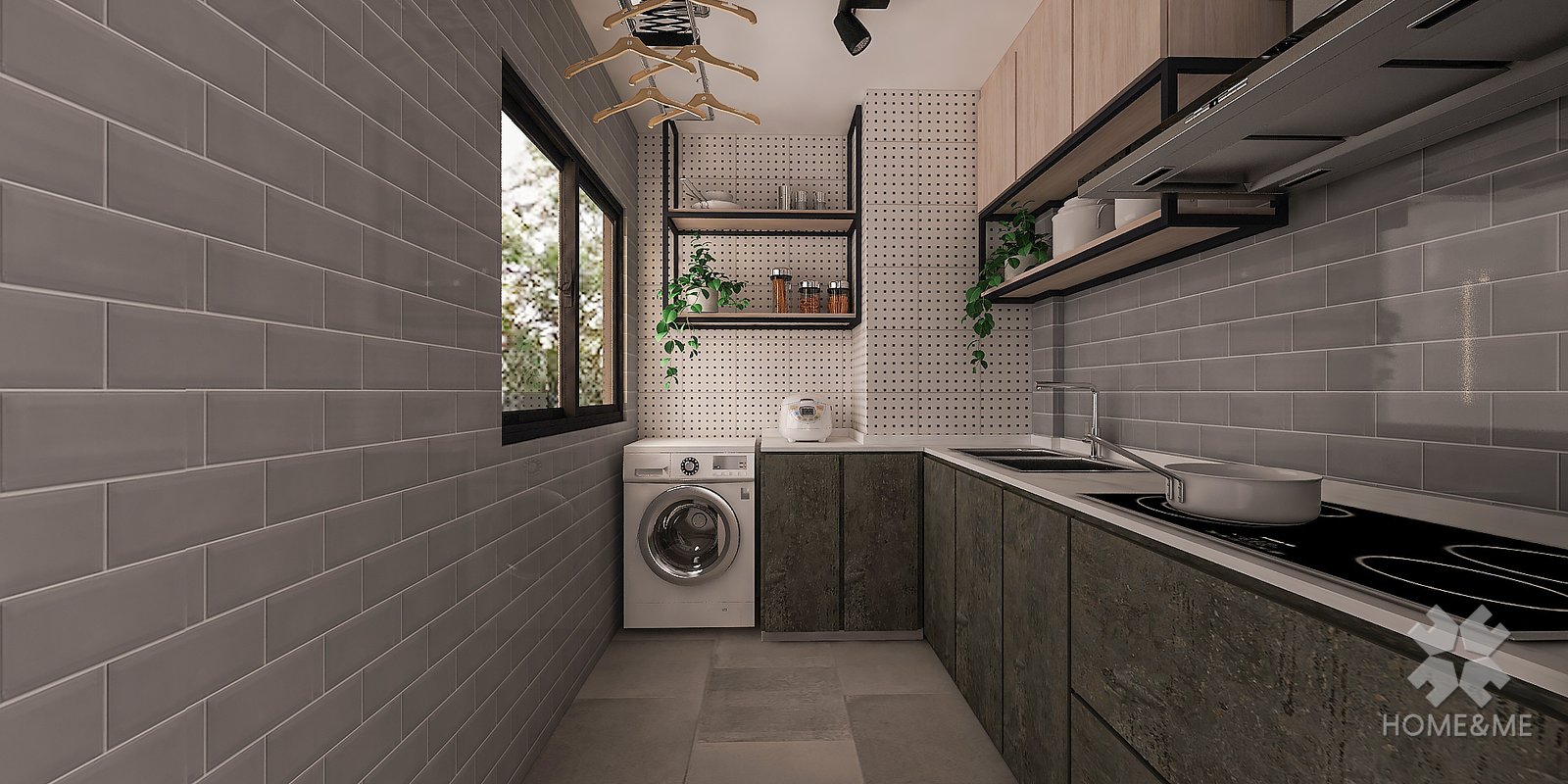

5. Concept imagery. A visual aid for discussing a direction. It cannot override the reviewed layout proposal and is not dimensional evidence.
6. Site, as-built and construction truth. Appropriate measurements, records, specifications, current official requirements and qualified assessments.

The first five do not guarantee the sixth. Everything plan-derived remains non-as-built, non-survey, non-inspection, non-construction and non-regulatory.

What to defer

Defer wall-removal conclusions, changes to openings or services, concealed-condition or defect conclusions, final fitted dimensions, furniture or appliance fit, structural, mechanical, electrical and plumbing decisions, regulatory conclusions, construction methods, procurement quantities, prices, timelines and commitments until the necessary measurements, records, current official information and qualified checks exist.

Deferral is useful: it identifies exactly what evidence must arrive before a decision becomes responsible.
